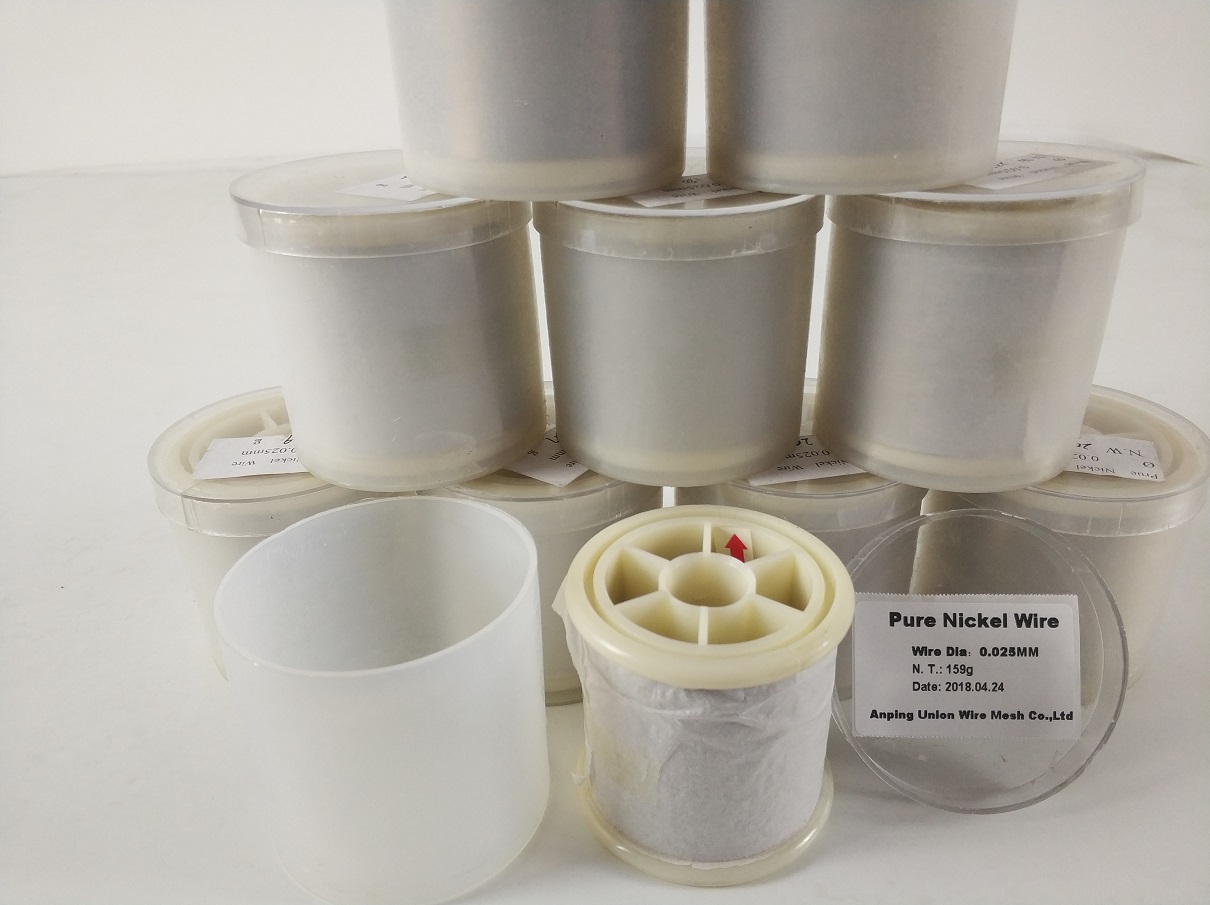

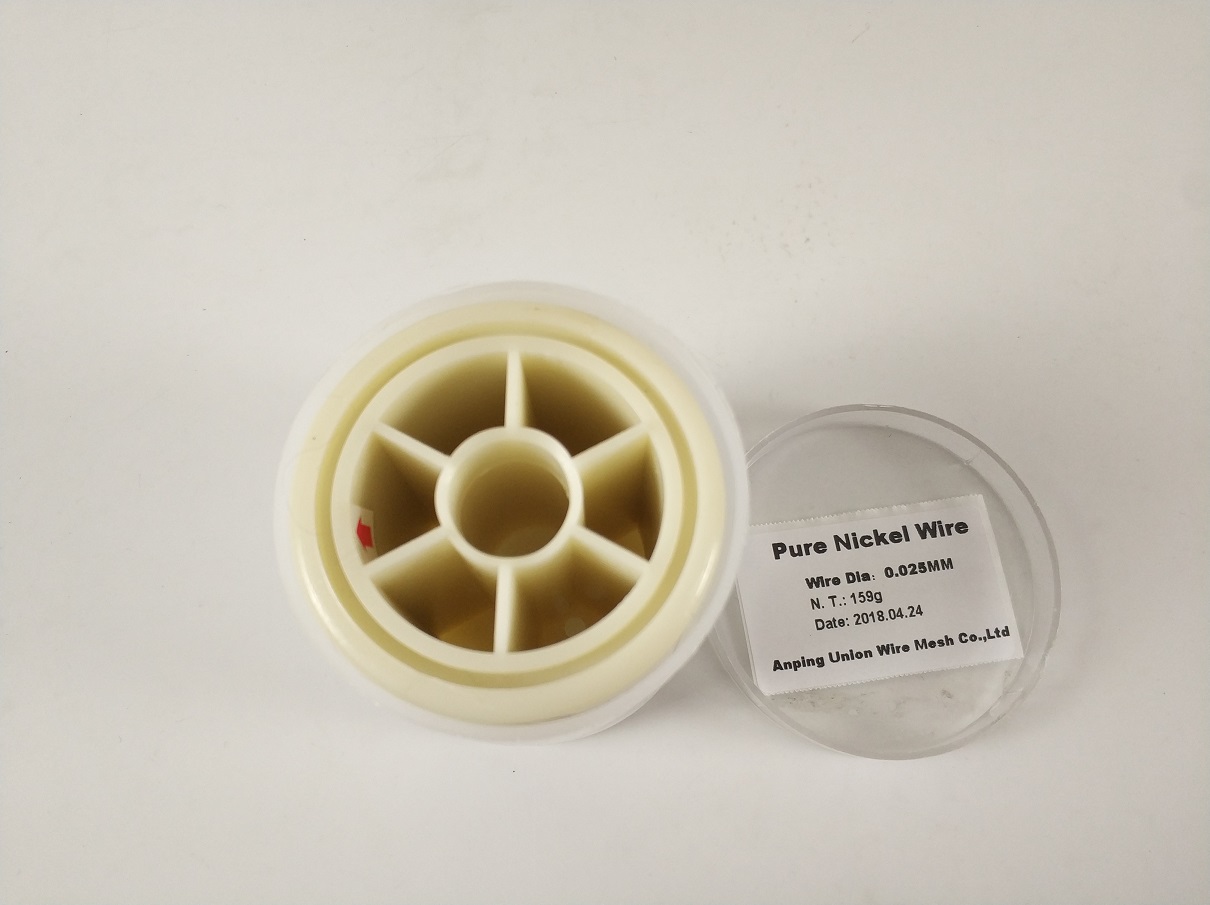

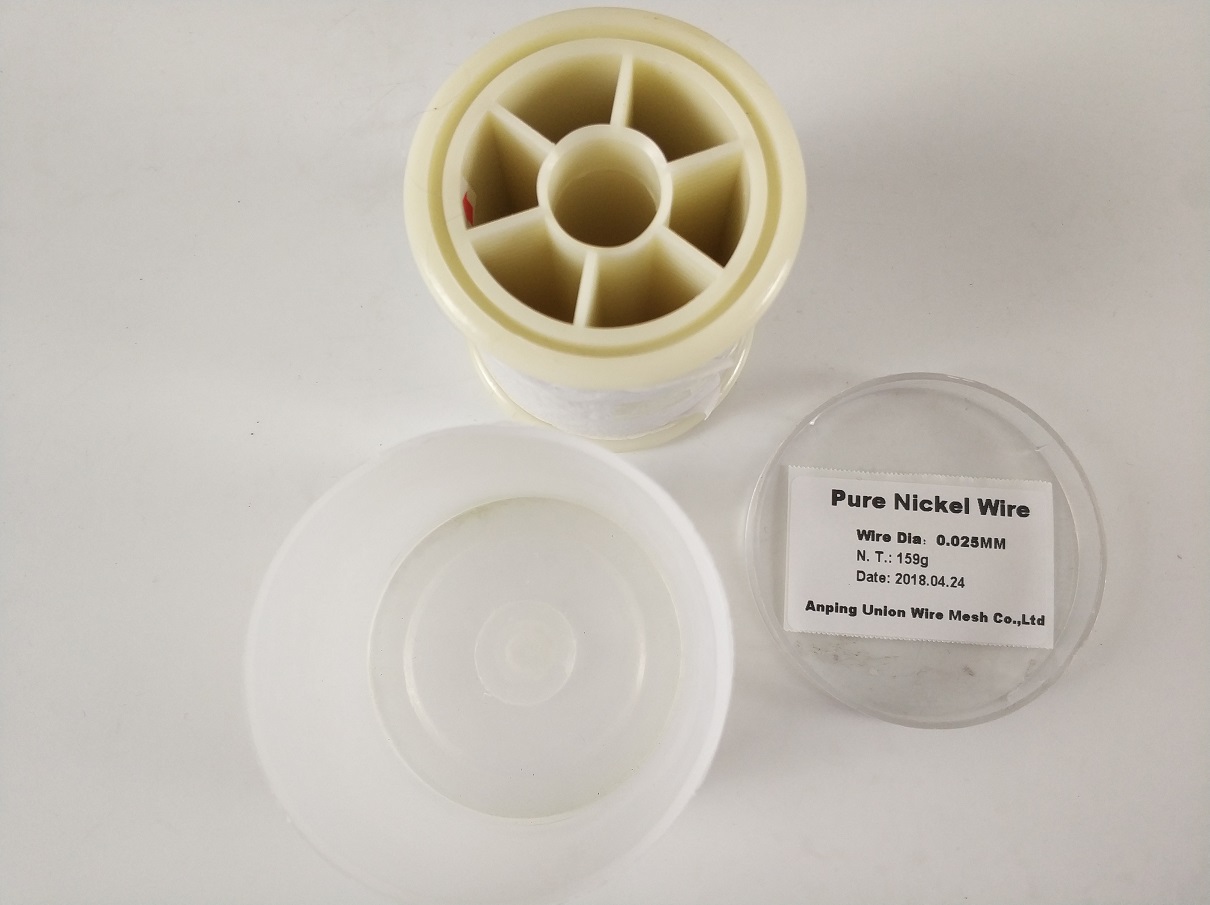

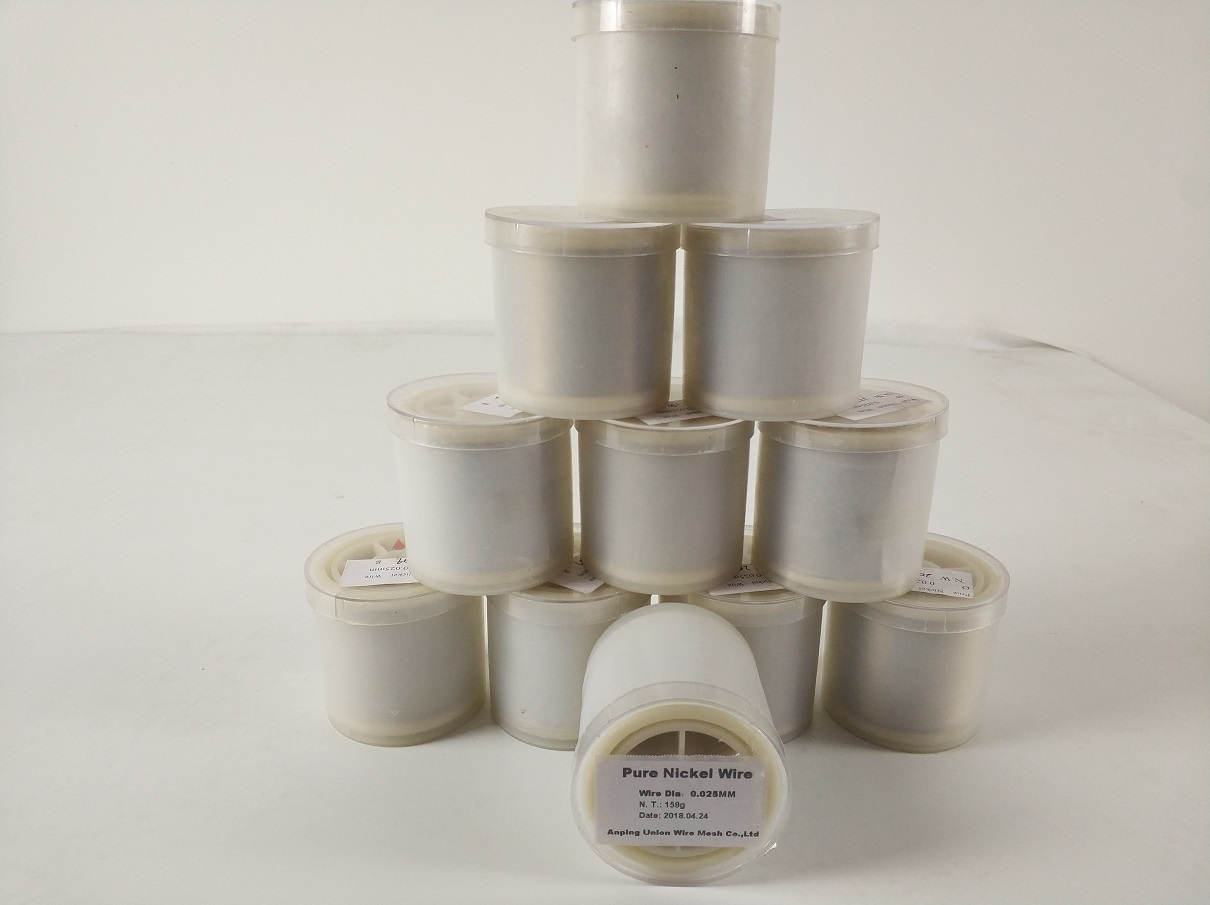

Nickel Fine Wire

Pure Nickel wire are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp

Inquire Now Next Product

Product Description

We provide the pure nickel wire form from dia 0.025mm to 8mm.

Pure Nickel	Ni+Co	Cu	Si	Mn	C	Mg	s	Fe	Total impurity
Pure Nickel	≥	≤
N2	99.98	0.001	0.003	0.002	0.005	0.003	0.001	0.007	0.02
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.04	0.1
N6	99.5	0.06	0.1	0.05	0.1	0.1	0.005	0.1	0.5

The N6 grade is similar to Nickel 200, nickel 201.

We also can make the Nickel 212 wire, NiMn1, NiMn2 wire. We also accept the special alloy if the customer have special requirement.

Diameter		Weight	Resistance	Diameter		Weight	Resistance
mm	Tolerance	g/km	Ω/m 20℃	mm	Tolerance	kg/km	Ω/m 20℃
0.03	±0.0015	6.29	693.56	0.45	±0.015	1.4	3.08
0.04	±0.002	11.18	390.13	0.50	±0.015	1.7	2.50
0.05	±0.002	17.47	249.68	0.55	±0.03	2.1	2.06
0.06	±0.0025	25.15	173.39	0.60	±0.03	2.5	1.73
0.07	±0.0025	34.23	127.39	0.65	±0.03	3.0	1.48
0.08	±0.003	44.71	97.53	0.70	±0.03	3.4	1.27
0.09	±0.003	56.59	77.06	0.75	±0.03	3.9	1.11
0.10	±0.003	69.87	62.42	0.80	±0.03	4.5	0.98
0.11	±0.004	84.54	51.59	0.85	±0.03	5.0	0.86
0.12	±0.004	101	43.35	0.90	±0.03	5.7	0.77
0.13	±0.004	118	36.94	1.00	±0.03	7.0	0.62
0.14	±0.004	137	31.85	1.10	±0.04	8.5	0.52
0.15	±0.005	157	27.74	1.20	±0.04	10.1	0.43
0.16	±0.005	179	24.38	1.30	±0.04	11.8	0.37
0.17	±0.005	202	21.60	1.40	±0.05	13.7	0.32
0.18	±0.005	226	19.27	1.50	±0.05	15.7	0.28
0.19	±0.005	252	17.29	1.60	±0.05	17.9	0.24
0.20	±0.006	279	15.61	1.70	±0.05	20.2	0.22
0.22	±0.006	338	12.90	1.80	±0.06	22.6	0.19
0.25	±0.006	437	9.99	1.90	±0.06	25.2	0.17
0.28	±0.007	548	7.96	2.00	±0.06	27.9	0.16
0.30	±0.007	629	6.94	2.10	±0.06	30.8	0.14
0.32	±0.01	715	6.10	2.20	±0.06	33.8	0.13
0.35	±0.01	856	5.10	2.30	±0.06	37.0	0.12
0.38	±0.01	1009	4.32	2.40	±0.06	40.2	0.11
0.40	±0.01	1118	3.90	2.50	±0.06	43.7	0.10
