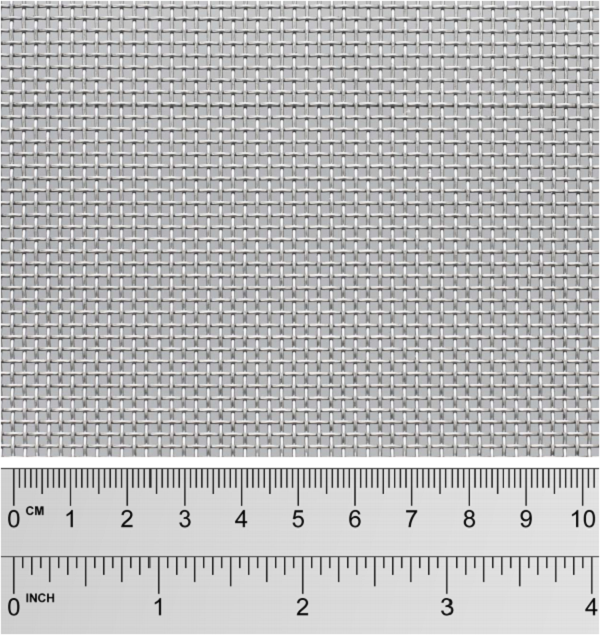

Introduction for Woven Wire cloth
• Materials: 302, 304,304L,316, 316L, 321,309S, 430,Monel 400, Brass, Copper, Hastelloy, Inconel, nickel etc
• Wire diameter from 20µm to 2mm
• Mesh opening from 3µm to 12.7 mm
• Maximum width 6 meter
• Edges: cut, bent, welded, folded
Product Description
Technical Specs:
Material: | S.S 304 L; 316 L |
Mesh: | 12 |
Wire Diameter: | 0.71mm |
Width: | ≤5M |
Length： | ≤60M |
Weave: | Twill / Plain Weave |
Weight: | 3.0Kg/㎡ |
Open Area： | 44% |
Stock Status: | Stocked |
