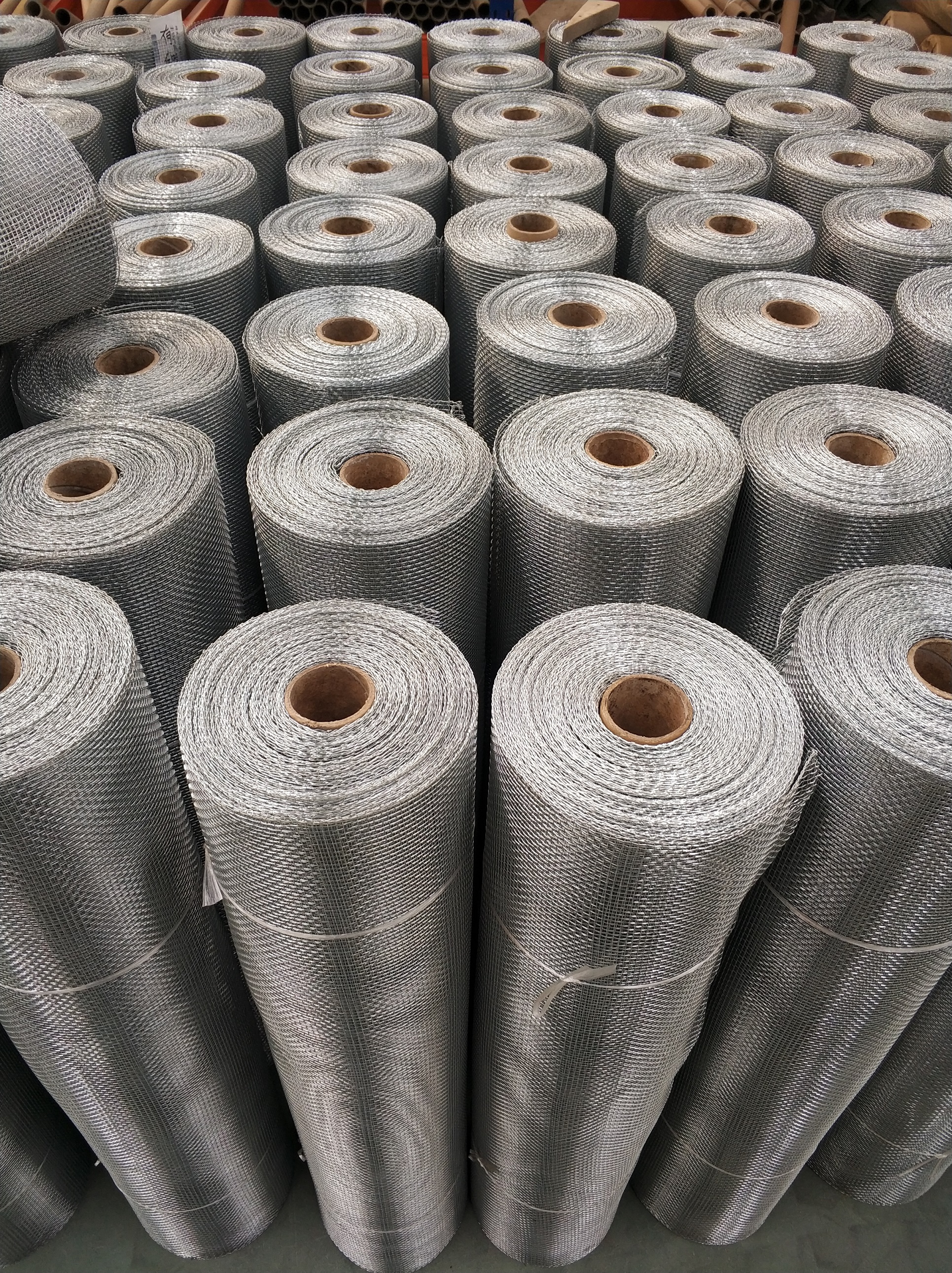

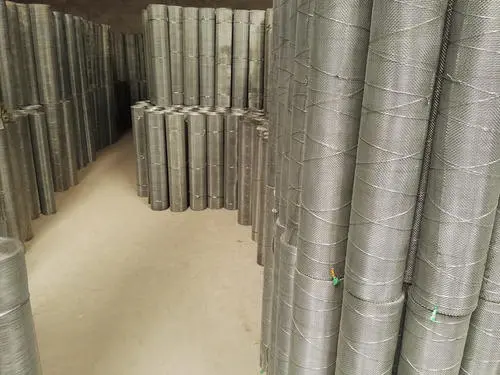

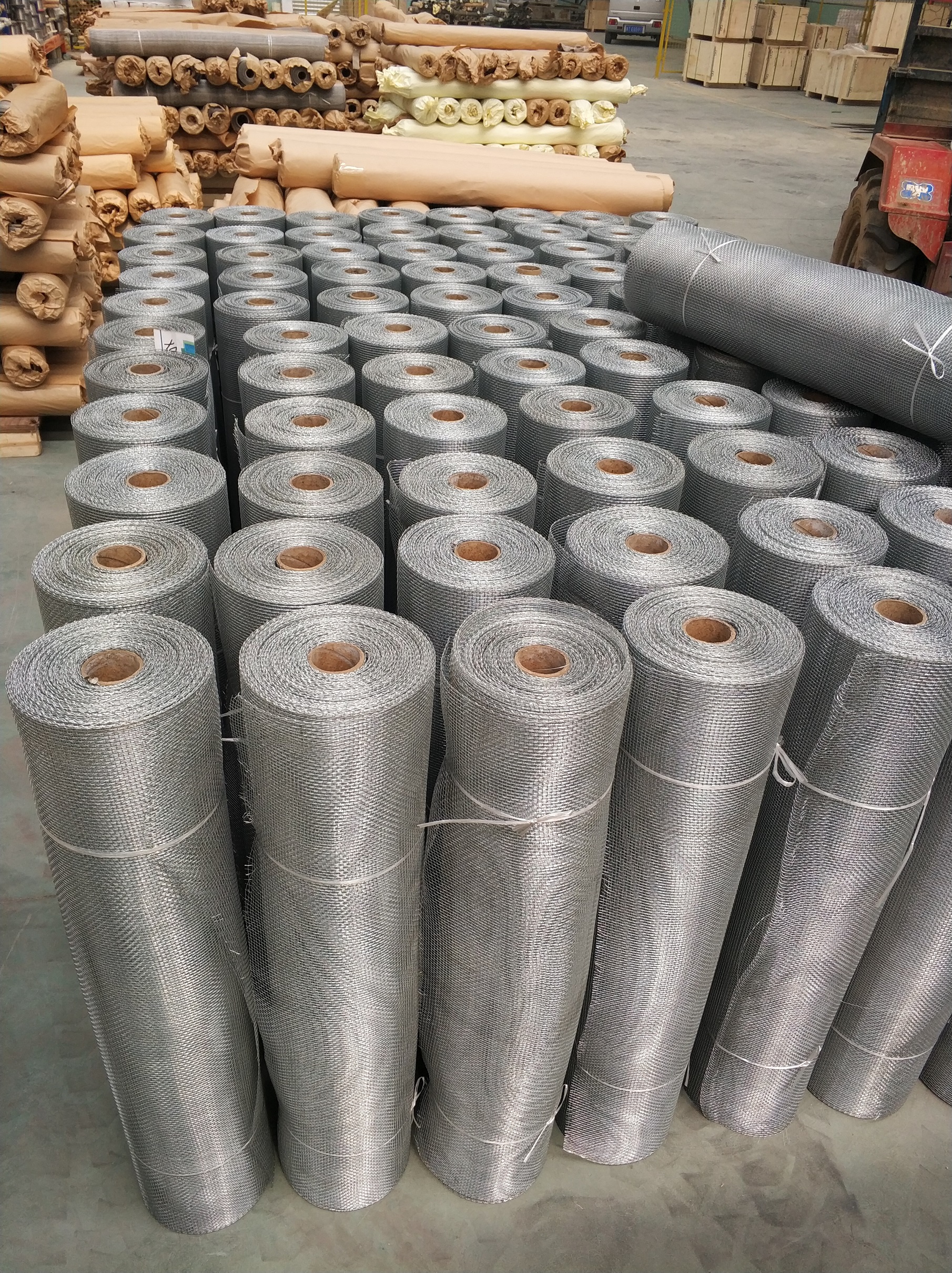

Galvanized Square Wire Mesh

Galvanized Woven Wire Mesh
Usage: Filters, sieve, chemical industry, mine industry, food and window screen, etc
Material: Electro and Hot-dipped Galvanized wire, Plain Steel Wire
Woven type: Plain and Twill Weave
Mesh count: 3-60
Diameter: 1.6-0.12mm
Roll Width: Max 240″
Roll Length: Max 2000′
Packaging: inner waterproof paper, outside plastic cloth, put into wooden pallet or case
Delivery Time: 5 days for stock material

Inquire Now

Product Description

Galvanized woven wire mesh is one of the most inexpensive options in window screen and filtration applications. The mesh is coated with zinc to protect it from rust and corrosion. The galvanized wire mesh has corrosion resistance and has a longer service life than plain steel wire mesh.

Typical applications including: window screens, safety guards, sieve grains, oil strainers, vibrating screen, liquid and gas filtration.

Types of Galvanized Woven Wire Mesh:
Electro Galvanized (Before Weaving)
Electro Galvanized (After Weaving)
Hot-Dipped Galvanized (Before Weaving)
Hot-Dipped Galvanized (After Weaving)

Galvanized Woven Wire Mesh Specification

Mesh count	Wire Dia. (mm)	Opening (mm)
3	1.6	6.87
4	1.2	5.15
5	0.95	4.13
6	0.8	3.43
8	0.7	2.43
10	0.6	1.94
12	0.55	1.56
14	0.14	1.4
16	0.38	1.24
18	0.3	1.11
20	0.27	1
22	0.25	0.9
24	0.23	0.83
26	0.2	0.78
28	0.18	0.73
30	0.15	0.7
35	0.14	0.59
40	0.14	0.5
50	0.12	0.39
60	0.12	0.3
